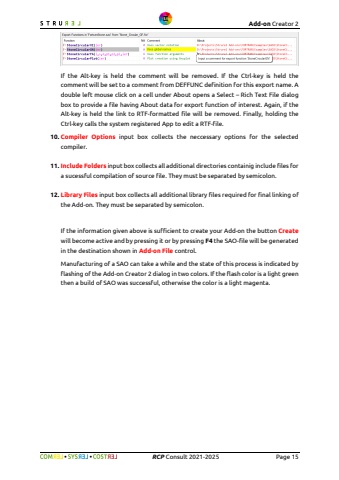

Add-on Creator 2%uf09f %uf09f RCP Consult 2021-2025 Page 15If the Alt-key is held the comment will be removed. If the Ctrl-key is held the comment will be set to a comment from DEFFUNC definition for this export name. Adouble left mouse click on a cell under About opens a Select %u2013 Rich Text File dialog box to provide a file having About data for export function of interest. Again, if the Alt-key is held the link to RTF-formatted file will be removed. Finally, holding theCtrl-key calls the system registered App to edit a RTF-file.10. Compiler Options input box collects the neccessary options for the selected compiler.11. Include Folders input box collects all additional directories containig include files for a sucessful compilation of source file. They must be separated by semicolon.12. Library Files input box collects all additional library files required for final linking of the Add-on. They must be separated by semicolon.If the information given above is sufficient to create your Add-on the button Createwill become active and by pressing it or by pressing F4 the SAO-file will be generated in the destination shown in Add-on File control.Manufacturing of a SAO can take a while and the state of this process is indicated by flashing of the Add-on Creator 2 dialog in two colors. If the flash color is a light green then a build of SAO was successful, otherwise the color is a light magenta.
