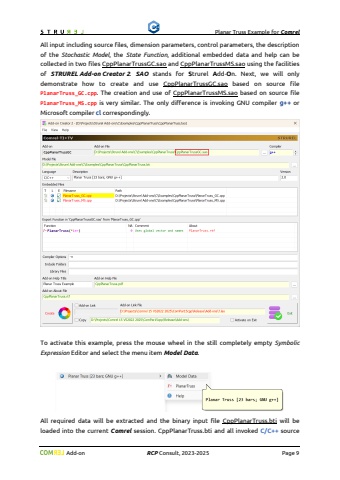

Planar Truss Example for Comrel Add-on RCP Consult, 2023-2025 Page 9All input including source files, dimension parameters, control parameters, the description of the Stochastic Model, the State Function, additional embedded data and help can becollected in two files CppPlanarTrussGC.sao and CppPlanarTrussMS.sao using the facilities of STRUREL Add-on Creator 2. SAO stands for Strurel Add-On. Next, we will onlydemonstrate how to create and use CppPlanarTrussGC.sao based on source file PlanarTruss_GC.cpp. The creation and use of CppPlanarTrussMS.sao based on source file PlanarTruss_MS.cpp is very similar. The only difference is invoking GNU compiler g++ orMicrosoft compiler cl correspondingly.To activate this example, press the mouse wheel in the still completely empty Symbolic Expression Editor and select the menu item Model Data.All required data will be extracted and the binary input file CppPlanarTruss.bti will be loaded into the current Comrel session. CppPlanarTruss.bti and all invoked C/C++ source
