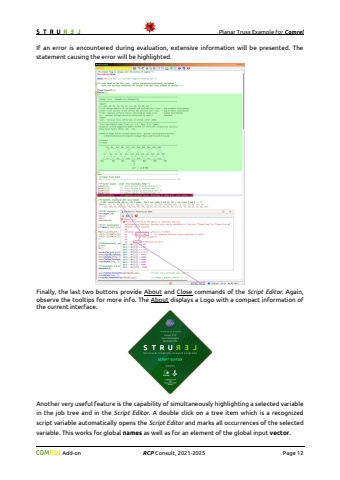

Planar Truss Example for Comrel Add-on RCP Consult, 2021-2025 Page 12If an error is encountered during evaluation, extensive information will be presented. The statement causing the error will be highlighted.Finally, the last two buttons provide About and Close commands of the Script Editor. Again, observe the tooltips for more info. The About displays a Logo with a compact information of the current interface.Another very useful feature is the capability of simultaneously highlighting a selected variable in the job tree and in the Script Editor. A double click on a tree item which is a recognized script variable automatically opens the Script Editor and marks all occurrences of the selected variable. This works for global names as well as for an element of the global input vector.
