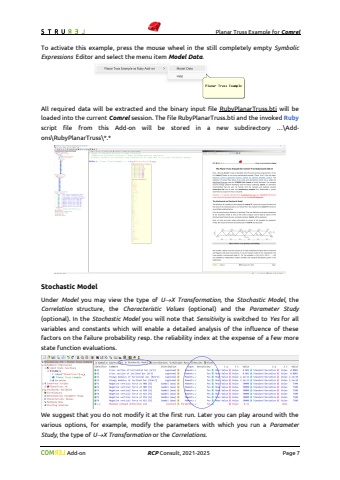

Planar TrussExamplefor ComrelAdd-onRCPConsult, 2021-2025Page 7To activate this example, press the mouse wheel in the still completely empty Symbolic Expressions Editor and select the menu item Model Data.All required data will be extractedand the binary input file RubyPlanarTruss.btiwill be loadedintothe current Comrelsession. The file RubyPlanarTruss.bti and the invoked Rubyscriptfile fromthis Add-on will be storedin a new subdirectory %u2026\\Addons\\RubyPlanarTruss\\*.*Stochastic ModelUnder Modelyou may view the type of U%u2192X Transformation, the Stochastic Model, the Correlationstructure, the Characteristic Values(optional) and the Parameter Study(optional). In the Stochastic Modelyou will note that Sensitivityis switched to Yesfor all variables and constants which will enable a detailed analysis of the influence of these factors on the failure probability resp. the reliability indexat the expense of a few more state function evaluations. We suggest that you do not modify it at the first run. Later you can play around with the various options, for example, modify the parameters with which you run a Parameter Study, the type of U%u2192XTransformationorthe Correlations.
