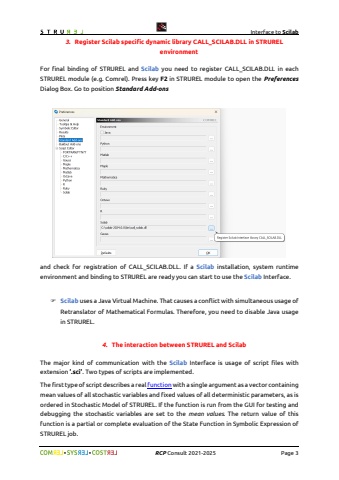

Interface to Scilab%uf09f %uf09f RCP Consult 2021-2026 Page 33. Register Scilab specific dynamic library CALL_SCILAB.DLL in STRURELenvironmentFor final binding of STRUREL and Scilab you need to register CALL_SCILAB.DLL in each STRUREL module (e.g. Comrel). Press key F2 in STRUREL module to open the PreferencesDialog Box. Go to position Standard Add-onsand check for registration of CALL_SCILAB.DLL. If a Scilab installation, system runtime environment and binding to STRUREL are ready you can start to use the Scilab Interface.%uf046 Scilab uses a Java Virtual Machine. That causes a conflict with simultaneous usage of Retranslator of Mathematical Formulas. Therefore, you need to disable Java usagein STRUREL.4. The interaction between STRUREL and ScilabThe major kind of communication with the Scilab Interface is usage of script files with extension %u2019.sci%u2019. Two types of scripts are implemented.The first type of script describes a real function with a single argument as a vector containing mean values of all stochastic variables and fixed values of all deterministic parameters, as is ordered in Stochastic Model of STRUREL. If the function is run from the GUI for testing and debugging the stochastic variables are set to the mean values. The return value of this function is a partial or complete evaluation of the State Function in Symbolic Expression of STRUREL job.
