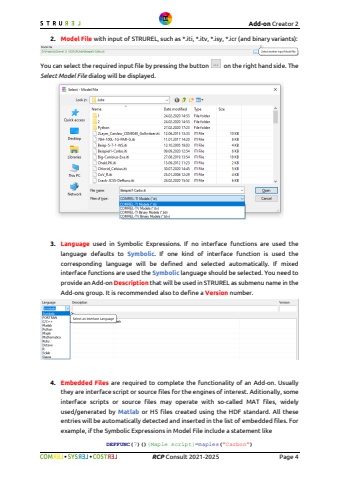

                                    Add-on Creator 2%uf09f %uf09f RCP Consult 2021-2025 Page 42. Model File with input of STRUREL, such as *.iti, *.itv, *.isy, *.icr (and binary variants):You can select the required input file by pressing the button on the right hand side. The Select Model File dialog will be displayed.3. Language used in Symbolic Expressions. If no interface functions are used the language defaults to Symbolic. If one kind of interface function is used the corresponding language will be defined and selected automatically. If mixed interface functions are used the Symbolic language should be selected. You need to provide an Add-on Description that will be used in STRUREL as submenu name in the Add-ons group. It is recommended also to define a Version number.4. Embedded Files are required to complete the functionality of an Add-on. Usually they are interface script or source files for the engines of interest. Aditionally, some interface scripts or source files may operate with so-called MAT files, widelyused/generated by Matlab or H5 files created using the HDF standard. All these entries will be automatically detected and inserted in the list of embedded files. For example, if the Symbolic Expressions in Model File include a statement likeDEFFUNC(7)(){Maple script}=maples(\
