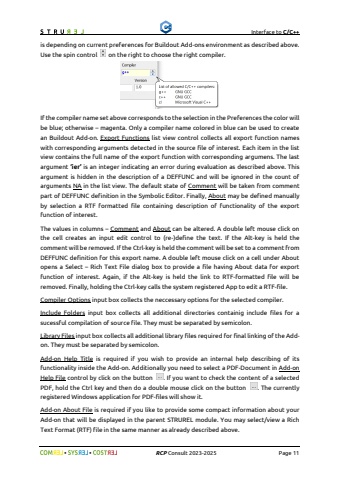

Interface to C/C++%uf09f%uf09fRCPConsult2023-2025Page 11Some additional valuesneed to be defined before you can use the Evaluation button in the Script Editor toolbar to control syntax and numeric of your export function(s).You must at least provide a Descriptionof Add-on and its Versionthat should be bigger as 0.0.Additionally the Compilername will be displayed in two colors %u2013magenta or blue. This color is depending on current preferences for Buildout Add-ons environment as described above. Use the spin control on the right to choose the rightcompiler.If the compiler name set above corresponds to the selection in the Preferences the color will be blue; otherwise %u2013magenta. Only a compiler name colored in blue can be used to create an Buildout Add-on.Export Functionslist view control collects all export function names with corresponding arguments detected in the source file of interest.Each item in the list view contains the full name of the export function with corresponding argumens. The last argument %u2018ier%u2019is an integer indicating an error during evaluation as described above. This argument is hidden in the description of a DEFFUNC and will be ignored in the count of arguments NAin the list view. The default state of Commentwill be taken from comment part of DEFFUNC definition in the Symbolic Editor. Finally, Aboutmay be defined manually by selection a RTF formatted file containing description of functionality of the export function of interest. The values in columns %u2013Commentand Aboutcan be altered. A double left mouse click on the cell creates an input edit control to (re-)define the text. If the Alt-key is held the comment will be removed. If the Ctrl-key is held the comment will be set to a comment from DEFFUNC definition for this export name. A double left mouse click on a cell under About opens a Select %u2013Rich Text File dialog box to provide a file having About data for export function of interest. Again, if the Alt-key is held the link to RTF-formatted file will be removed. Finally, holding the Ctrl-key calls the system registered App to edit a RTF-file.Compiler Optionsinput box collects the neccessary options for the selected compiler.Include Foldersinput box collects all additional directories containig include files for a sucessful compilation of source file. They must be separated by semicolon.Library Filesinput box collects all additional library files required for final linking of the Addon. They must be separated by semicolon.Add-on Help Titleis required if you wish to provide an internal help describing of its functionality inside the Add-on. Additionally you need to select a PDF-Document in Add-on Help Filecontrol by click on thebutton . If you want to check the content of a selected PDF, hold the Ctrl key and then do a double mouse click on the button . The currently registered Windows application for PDF-files will show it.
