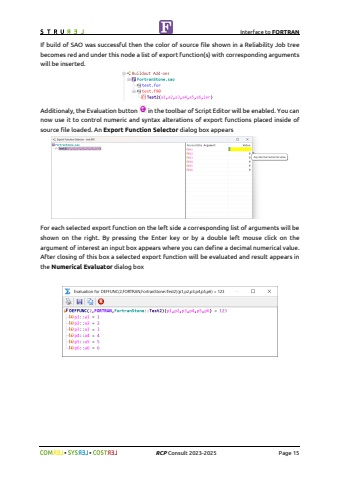

Interface to FORTRAN%uf09f %uf09f RCP Consult 2023-2025 Page 15If build of SAO was successful then the color of source file shown in a Reliability Job tree becomes red and under this node a list of export function(s) with corresponding arguments will be inserted.Additionaly, the Evaluation button in the toolbar of Script Editor will be enabled. You can now use it to control numeric and syntax alterations of export functions placed inside of source file loaded. An Export Function Selector dialog box appearsFor each selected export function on the left side a corresponding list of arguments will be shown on the right. By pressing the Enter key or by a double left mouse click on the argument of interest an input box appears where you can define a decimal numerical value. After closing of this box a selected export function will be evaluated and result appears in the Numerical Evaluator dialog box
