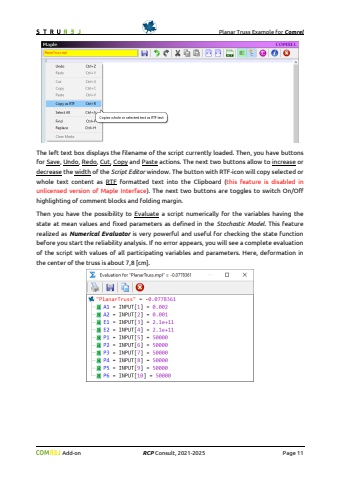

Planar Truss Example for Comrel Add-on RCP Consult, 2021-2025 Page 11The left text box displays the filename of the script currently loaded. Then, you have buttons for Save, Undo, Redo, Cut, Copy and Paste actions. The next two buttons allow to increase or decrease the width of the Script Editor window. The button with RTF-icon will copy selected or whole text content as RTF formatted text into the Clipboard (this feature is disabled in unlicensed version of Maple Interface). The next two buttons are toggles to switch On/Off highlighting of comment blocks and folding margin.Then you have the possibility to Evaluate a script numerically for the variables having the state at mean values and fixed parameters as defined in the Stochastic Model. This feature realized as Numerical Evaluator is very powerful and useful for checking the state function before you start the reliability analysis. If no error appears, you will see a complete evaluation of the script with values of all participating variables and parameters. Here, deformation in the center of the truss is about 7,8 [cm].
