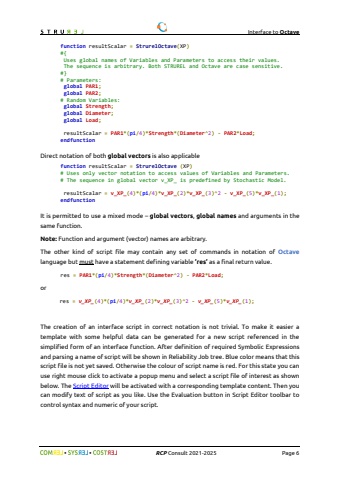

                                    Interface to Octave%uf09f%uf09fRCPConsult2021-2025Page 6Alternatively, the assigned global namesmay be used also inside of functionfunctionresultScalar =StrurelOctave(XP)#{Uses global names of Variables and Parameters to access their values.The sequence is arbitrary. Both STRUREL and Octave are case sensitive.#}# Parameters:globalPAR1;globalPAR2;# Random Variables:globalStrength;globalDiameter;globalLoad;resultScalar =PAR1*(pi/4)*Strength*(Diameter^2)-PAR2*Load;endfunctionDirect notation of both global vectorsis also applicablefunctionresultScalar =StrurelOctave(XP)# Uses only vector notation to access values of Variables and Parameters.# The sequence in globalvector v_XP_is predefined by Stochastic Model.resultScalar =v_XP_(4)*(pi/4)*v_XP_(2)*v_XP_(3)^2-v_XP_(5)*v_XP_(1);endfunctionIt is permitted to use a mixed mode global vectors, global namesand arguments in the same function.Note:Functionand argument (vector)names are arbitrary.The other kind of script file may contain any set of commands in notation of Octavelanguage but musthave a statement defining variable %u2019res%u2019as a final return value.res=PAR1*(pi/4)*Strength*(Diameter^2)-PAR2*Load;orres =v_XP_(4)*(pi/4)*v_XP_(2)*v_XP_(3)^2-v_XP_(5)*v_XP_(1);The creation of an interface script in correct notation is not trivial. To make it easier a template with some helpful data can be generated for a new script referenced in the simplified form of an interface function. After definition of required Symbolic Expressions and parsing a name of script will be shown in Reliability Job tree. Blue color means that this script file is not yet saved. Otherwise the colour of script name is red. For this state you can use right mouse click to activate a popup menu and select a script file of interest as shown below. The Script Editorwill be activated with a corresponding template content. Then you can modify text of script as you like. Use the Evaluation button in Script Editor toolbar to control syntax and numeric of your script.
