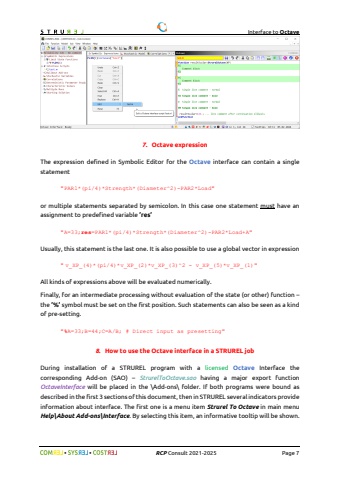

Page 7 - Demo
P. 7
Interface to Octave%uf09f %uf09f RCP Consult 2021-2025 Page 77. Octave expressionThe expression defined in Symbolic Editor for the Octave interface can contain a single statement\-PAR2*Load\or multiple statements separated by semicolon. In this case one statement must have an assignment to predefined variable %u2019res%u2019\-PAR2*Load+A\Usually, this statement is the last one. It is also possible to use a global vector in expression\ v_XP_(4)*(pi/4)*v_XP_(2)*v_XP_(3)^2 - v_XP_(5)*v_XP_(1)\All kinds of expressions above will be evaluated numerically. Finally, for an intermediate processing without evaluation of the state (or other) function %u2013the %u2019%%u2019 symbol must be set on the first position. Such statements can also be seen as a kind of pre-setting.\ # Direct input as presetting\8. How to use the Octave interface in a STRUREL jobDuring installation of a STRUREL program with a licensed Octave Interface thecorresponding Add-on (SAO) %u2013 StrurelToOctave.sao having a major export function OctaveInterface will be placed in the \\Add-ons\\ folder. If both programs were bound as described in the first 3 sections of this document, then in STRUREL several indicators provide information about interface. The first one is a menu item Strurel To Octave in main menu Help\\About Add-ons\\Interface. By selecting this item, an informative tooltip will be shown.
