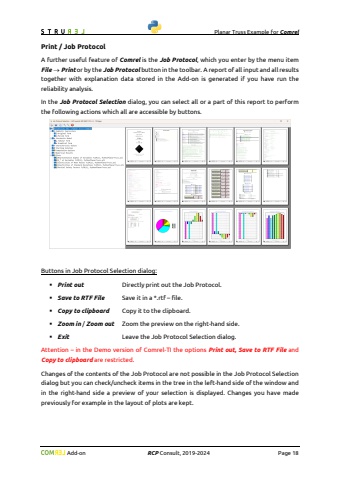

Planar TrussExamplefor ComrelAdd-onRCPConsult, 2019-2025Page 18Print / Job ProtocolA further useful feature ofComrelis the Job Protocol, which you enter by the menu item File%u2192Printor by the Job Protocol buttonin the toolbar. A report of all input and all results together with explanation data stored in the Add-on is generated if you have run the reliability analysis.In the Job Protocol Selection dialog, you can select all or a part of this report to perform the following actions which all are accessible by buttons.Buttons in Job Protocol Selection dialog:%u25aaPrint outDirectly print out the Job Protocol.%u25aaSave to RTF FileSave it in a *.rtf %u2013file.%u25aaCopy to clipboardCopy it to the clipboard.%u25aaZoom in/ Zoom outZoom the preview on the right-handside.%u25aaExitLeave the Job Protocol Selection dialog.Attention %u2013in the Demo version of Comrel-TIthe options Printout, Save to RTF FileandCopy to clipboard are restricted.Changes of the contents of the Job Protocol are not possible in the Job Protocol Selection dialog but you can check/uncheck items in the tree in the left-handside of the window and in the right-handside a preview of your selection is displayed. Changes you have madepreviously for example in the layout of plots are kept.
