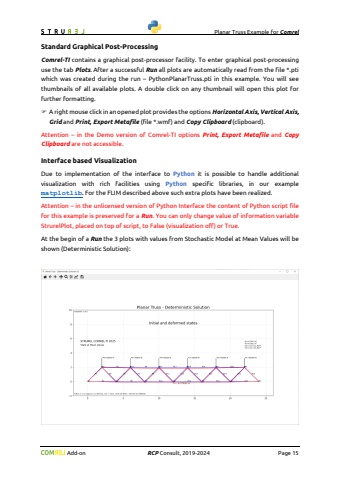

Planar TrussExamplefor ComrelAdd-onRCPConsult, 2019-2025Page 15Standard Graphical Post-ProcessingComrel-TIcontains a graphical post-processor facility. To enter graphical post-processing use the tab Plots. After a successful Runall plots are automatically read from the file *.pti which was created during the run %u2013PythonPlanarTruss.ptiin this example. You will see thumbnails of all available plots. A double click on any thumbnail will open this plot for further formatting.%uf046A right mouse click in an opened plot provides the options Horizontal Axis, Vertical Axis, Grid and Print, Export Metafile(file *.wmf) andCopy Clipboard (clipboard).Attention %u2013in the Demo version of Comrel-TIoptions Print, Export MetafileandCopy Clipboard are not accessible.Interface based VisualizationDue to implementation oftheinterface to Pythonit is possible to handleadditional visualization with rich facilities usingPythonspecific libraries, in ourexample matplotlib.For theFLIM describedabove such extra plots have been realized.Attention %u2013in the unlicensed version of Python Interface the content of Python script filefor this exampleispreservedfor aRun. You can only change value of informationvariable StrurelPlot, placed on top of script, to False(visualizationoff)or True.At the begin of a Runthe 3 plotswith values from Stochastic Model at Mean Values will be shown(Deterministic Solution):
