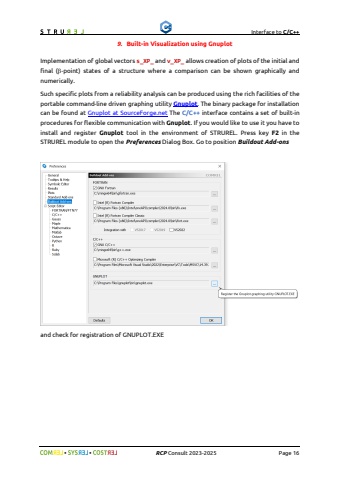

Interface to C/C++%uf09f %uf09f RCP Consult 2023-2025 Page 169. Built-in Visualization using GnuplotImplementation of global vectors s_XP_ and v_XP_ allows creation of plots of the initial and final (%uf062-point) states of a structure where a comparison can be shown graphically and numerically.Such specific plots from a reliability analysis can be produced using the rich facilities of the portable command-line driven graphing utility Gnuplot. The binary package for installation can be found at Gnuplot at SourceForge.net The C/C++ interface contains a set of built-in procedures for flexible communication with Gnuplot. If you would like to use it you have toinstall and register Gnuplot tool in the environment of STRUREL. Press key F2 in the STRUREL module to open the Preferences Dialog Box. Go to position Buildout Add-onsand check for registration of GNUPLOT.EXE
