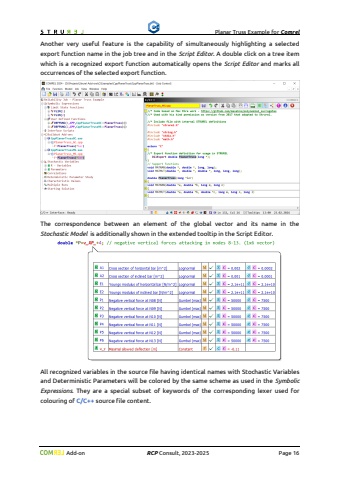

Planar Truss Example for Comrel Add-on RCP Consult, 2023-2025 Page 16Another very useful feature is the capability of simultaneously highlighting a selected export function name in the job tree and in the Script Editor. A double click on a tree item which is a recognized export function automatically opens the Script Editor and marks all occurrences of the selected export function.The correspondence between an element of the global vector and its name in the Stochastic Model is additionally shown in the extended tooltip in the Script Editor.All recognized variables in the source file having identical names with Stochastic Variables and Deterministic Parameters will be colored by the same scheme as used in the Symbolic Expressions. They are a special subset of keywords of the corresponding lexer used for colouring of C/C++ source file content.
