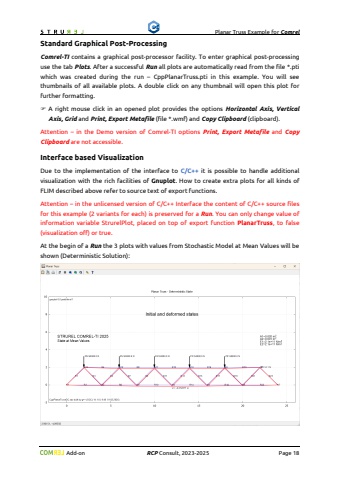

Planar Truss Example for Comrel Add-on RCP Consult, 2023-2025 Page 18Standard Graphical Post-ProcessingComrel-TI contains a graphical post-processor facility. To enter graphical post-processing use the tab Plots. After a successful Run all plots are automatically read from the file *.pti which was created during the run %u2013 CppPlanarTruss.pti in this example. You will see thumbnails of all available plots. A double click on any thumbnail will open this plot for further formatting.%uf046 A right mouse click in an opened plot provides the options Horizontal Axis, Vertical Axis, Grid and Print, Export Metafile (file *.wmf) and Copy Clipboard (clipboard).Attention %u2013 in the Demo version of Comrel-TI options Print, Export Metafile and Copy Clipboard are not accessible.Interface based VisualizationDue to the implementation of the interface to C/C++ it is possible to handle additional visualization with the rich facilities of Gnuplot. How to create extra plots for all kinds of FLIM described above refer to source text of export functions.Attention %u2013 in the unlicensed version of C/C++ Interface the content of C/C++ source filesfor this example (2 variants for each) is preserved for a Run. You can only change value of information variable StrurelPlot, placed on top of export function PlanarTruss, to false(visualization off) or true.At the begin of a Run the 3 plots with values from Stochastic Model at Mean Values will be shown (Deterministic Solution):
