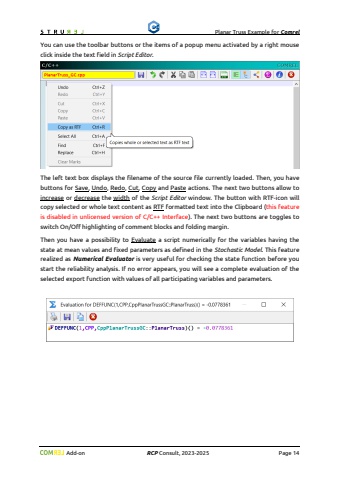

Planar Truss Examplefor ComrelAdd-onRCPConsult, 2023-2025Page 14You can use the toolbar buttons or the items of a popup menu activated by a right mouse click inside thetext field in Script Editor. The left text box displays the filename of the source filecurrently loaded. Then, you have buttons for Save, Undo, Redo, Cut, Copyand Pasteactions. The next two buttons allow to increaseor decreasethe widthof the Script Editorwindow. The button with RTF-icon will copy selected or whole text content as RTFformatted text into the Clipboard (this feature is disabled in unlicensed versionof C/C++Interface). The next two buttons are toggles to switch On/Off highlighting of comment blocks and folding margin.Then you have a possibility to Evaluatea script numerically for the variables having the state at mean values and fixed parameters as defined in the Stochastic Model. This feature realized as Numerical Evaluatoris very useful for checking the state function before you start the reliability analysis. If no error appears, you will see a complete evaluation of the selected export functionwith values of all participating variables and parameters.
