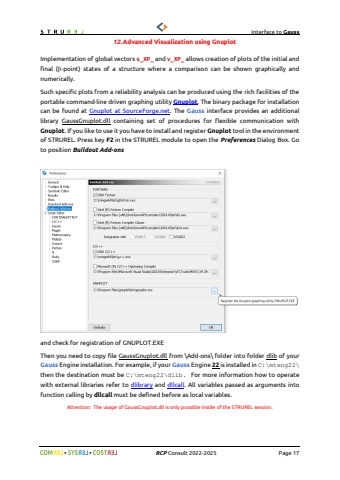

                                    Interface to Gauss%uf09f %uf09f RCP Consult 2022-2025 Page 1712. Advanced Visualization using GnuplotImplementation of global vectors s_XP_ and v_XP_ allows creation of plots of the initial and final (%uf062-point) states of a structure where a comparison can be shown graphically and numerically.Such specific plots from a reliability analysis can be produced using the rich facilities of the portable command-line driven graphing utility Gnuplot. The binary package for installation can be found at Gnuplot at SourceForge.net. The Gauss interface provides an additional library GaussGnuplot.dll containing set of procedures for flexible communication with Gnuplot. If you like to use it you have to install and register Gnuplot tool in the environment of STRUREL. Press key F2 in the STRUREL module to open the Preferences Dialog Box. Go to position Buildout Add-onsand check for registration of GNUPLOT.EXEThen you need to copy file GaussGnuplot.dll from \\Add-ons\\ folder into folder dlib of your Gauss Engine installation. For example, if your Gauss Engine 22 is installed in C:\\mteng22\\then the destination must be C:\\mteng22\\dlib. For more information how to operate with external libraries refer to dlibrary and dllcall. All variables passed as arguments into function calling by dllcall must be defined before as local variables.Attention: The usage of GaussGnuplot.dll is only possible inside of the STRUREL session.
