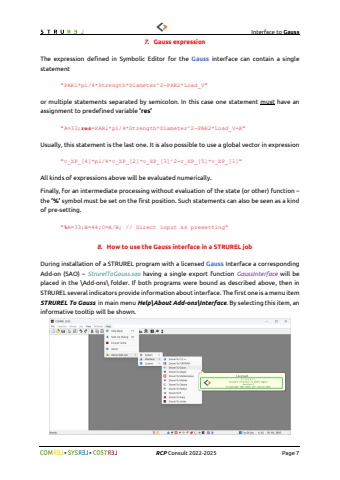

Interface to Gauss%uf09f %uf09f RCP Consult 2022-2025 Page 77. Gauss expressionThe expression defined in Symbolic Editor for the Gauss interface can contain a single statement\-PAR2*Load_V\or multiple statements separated by semicolon. In this case one statement must have an assignment to predefined variable %u2019res%u2019\-PAR2*Load_V+A\Usually, this statement is the last one. It is also possible to use a global vector in expression\_XP_[4]*pi/4*v_XP_[2]*v_XP_[3]^2-v_XP_[5]*v_XP_[1]\All kinds of expressions above will be evaluated numerically.Finally, for an intermediate processing without evaluation of the state (or other) function %u2013the %u2019%%u2019 symbol must be set on the first position. Such statements can also be seen as a kind of pre-setting.\ // Direct input as presetting\8. How to use the Gauss interface in a STRUREL jobDuring installation of a STRUREL program with a licensed Gauss Interface a corresponding Add-on (SAO) %u2013 StrurelToGauss.sao having a single export function GaussInterface will be placed in the \\Add-ons\\ folder. If both programs were bound as described above, then in STRUREL several indicators provide information about interface. The first one is a menu item STRUREL To Gauss in main menu Help\\About Add-ons\\Interface. By selecting this item, an informative tooltip will be shown.
