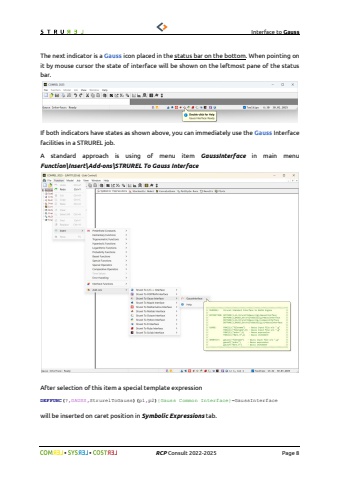

Interface to Gauss%uf09f%uf09fRCPConsult2022-2025Page 88.How to use theGaussinterface in a STRURELjobDuringinstallation of a STRURELprogramwith a licensed GaussInterface a corresponding Add-on (SAO) %u2013StrurelToGauss.saohaving a single export function GaussInterfacewill be placed in the \\Addons\\folder.If both programs were bound as described above,then in STRURELseveral indicators provide information about interface. The first one is a menu item STRURELToGauss in main menu Help\\About Add-ons\\Interface. By selecting this item, an informative tooltip will be shown.The nextindicator is a Gaussicon placed in the status bar on the bottom. When pointing on it by mouse cursor the state of interface will be shown on the leftmost pane of the status bar.If both indicators have states as shown above,you can immediately use the GaussInterface facilities in a STRURELjob.Astandard approach is using ofmenuitem GaussInterfacein main menu Function\\Insert\\Add-ons\\STRURELToGaussInterface
