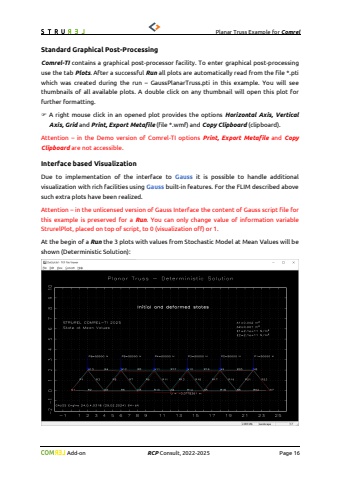

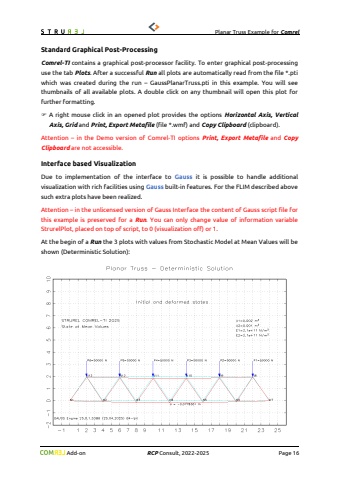

Planar Truss Example for Comrel Add-on RCP Consult, 2022-2025 Page 16Standard Graphical Post-ProcessingComrel-TI contains a graphical post-processor facility. To enter graphical post-processing use the tab Plots. After a successful Run all plots are automatically read from the file *.pti which was created during the run %u2013 GaussPlanarTruss.pti in this example. You will see thumbnails of all available plots. A double click on any thumbnail will open this plot for further formatting.%uf046 A right mouse click in an opened plot provides the options Horizontal Axis, Vertical Axis, Grid and Print, Export Metafile (file *.wmf) and Copy Clipboard (clipboard).Attention %u2013 in the Demo version of Comrel-TI options Print, Export Metafile and Copy Clipboard are not accessible.Interface based VisualizationDue to implementation of the interface to Gauss it is possible to handle additional visualization with rich facilities using Gauss built-in features. For the FLIM described above such extra plots have been realized.Attention %u2013 in the unlicensed version of Gauss Interface the content of Gauss script file for this example is preserved for a Run. You can only change value of information variable StrurelPlot, placed on top of script, to 0 (visualization off) or 1.At the begin of a Run the 3 plots with values from Stochastic Model at Mean Values will be shown (Deterministic Solution):
