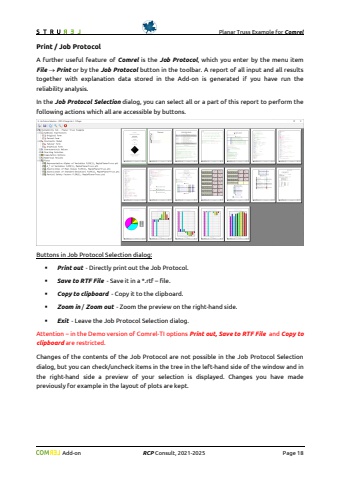

Planar Truss Example for Comrel Add-on RCP Consult, 2021-2025 Page 18Print / Job ProtocolA further useful feature of Comrel is the Job Protocol, which you enter by the menu item File %u2192 Print or by the Job Protocol button in the toolbar. A report of all input and all results together with explanation data stored in the Add-on is generated if you have run the reliability analysis.In the Job Protocol Selection dialog, you can select all or a part of this report to perform the following actions which all are accessible by buttons.Buttons in Job Protocol Selection dialog:%u25aa Print out - Directly print out the Job Protocol.%u25aa Save to RTF File - Save it in a *.rtf %u2013 file.%u25aa Copy to clipboard - Copy it to the clipboard.%u25aa Zoom in / Zoom out - Zoom the preview on the right-hand side.%u25aa Exit - Leave the Job Protocol Selection dialog.Attention %u2013 in the Demo version of Comrel-TI options Print out, Save to RTF File and Copy to clipboard are restricted.Changes of the contents of the Job Protocol are not possible in the Job Protocol Selection dialog, but you can check/uncheck items in the tree in the left-hand side of the window and in the right-hand side a preview of your selection is displayed. Changes you have madepreviously for example in the layout of plots are kept.
