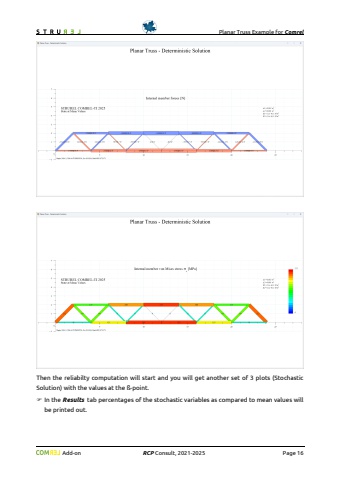

                                    Planar Truss Examplefor ComrelAdd-onRCPConsult, 2021-2025Page 16Standard Graphical Post-ProcessingComrel-TIcontains a graphical post-processor facility. To enter graphical post-processing use the tab Plots. After a successful Runall plots are automatically read from the file *.pti which was created during the run %u2013MaplePlanarTruss.pti in this example. You will see thumbnails of all available plots. A double click on any thumbnail will open this plot for further formatting.%uf046A right mouse click in an opened plot provides the options Horizontal Axis, Vertical Axis, Grid and Print, Export Metafile(file *.wmf) andCopy Clipboard (clipboard).Attention %u2013in the Demo version of Comrel-TIoptions Print, Export MetafileandCopy Clipboard are not accessible.Interface based VisualizationDue to implementation of the interface to Mapleit is possible to handle additional visualization with rich facilities using Maplebuilt-in features. For the FLIM described above such extra plots have been realized.Attention %u2013in the unlicensed version of MapleInterface the content of Maplescript filefor this example ispreservedfor aRun. You can only change value of information variable StrurelPlot, placed on top of script, to false(visualization off) or true.At the begin of a Runthe 3 plots with values from Stochastic Model at Mean Values will be shown (Deterministic Solution):
