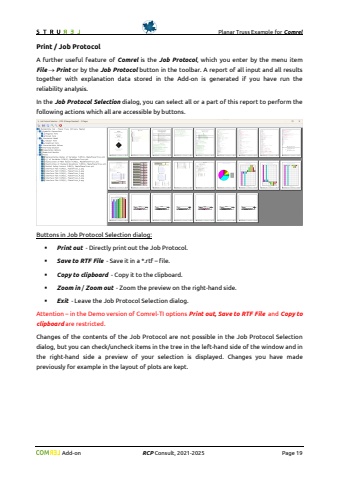

Planar Truss Examplefor ComrelAdd-onRCPConsult, 2021-2025Page 19Print / Job ProtocolA further useful feature ofComrelis the Job Protocol, which you enter by the menu item File%u2192Printor by the Job Protocol buttonin the toolbar. A report of all input and all results together with explanation data stored in the Add-on is generated if you have run the reliability analysis.In the Job Protocol Selection dialog, you can select all or a part of this report to perform the following actions which all are accessible by buttons.Buttons in Job Protocol Selection dialog:%u25aaPrint out-Directly print out the Job Protocol.%u25aaSave to RTF File-Save it in a *.rtf %u2013file.%u25aaCopy to clipboard-Copy it to the clipboard.%u25aaZoom in/ Zoom out-Zoom the preview on the right-hand side.%u25aaExit-Leave the Job Protocol Selection dialog.Attention %u2013in the Demo version of Comrel-TIoptions Printout, Save to RTF File andCopy to clipboard are restricted.Changes of the contents of the Job Protocol are not possible in the Job Protocol Selection dialog,but you can check/uncheck items in the tree in the left-hand side of the window and in the right-hand side a preview of your selection is displayed. Changes you have madepreviously for example in the layout of plots are kept.
