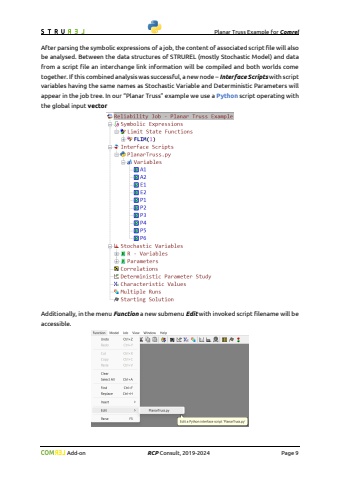

Planar TrussExamplefor ComrelAdd-onRCPConsult, 2019-2025Page 9After parsing the symbolic expressions of a job, the content of associated script file will also be analysed. Between the data structures of STRUREL(mostly Stochastic Model) and data from a script file an interchange link information will be compiled and both worlds come together. If thiscombined analysis was successful, a new node %u2013Interface Scriptswith script variables having the same names as Stochastic Variable and Deterministic Parameters will appear in the job tree. In our%u201cPlanar Truss%u201d example we useaPythonscriptoperating withthe global input vectorAdditionally, in the menu Function a new submenu Edit with invokedscript filename will be accessible.
