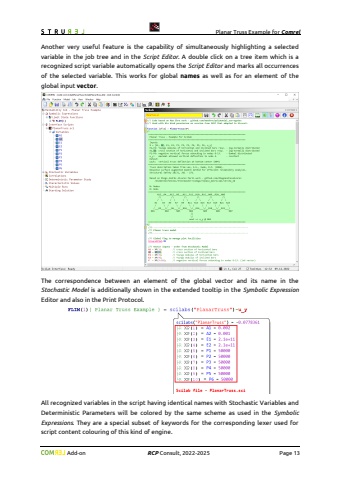

Planar Truss Example for Comrel Add-on RCP Consult, 2022-2025 Page 13Another very useful feature is the capability of simultaneously highlighting a selected variable in the job tree and in the Script Editor. A double click on a tree item which is a recognized script variable automatically opens the Script Editor and marks all occurrencesof the selected variable. This works for global names as well as for an element of the global input vector.The correspondence between an element of the global vector and its name in the Stochastic Model is additionally shown in the extended tooltip in the Symbolic ExpressionEditor and also in the Print Protocol.All recognized variables in the script having identical names with Stochastic Variables and Deterministic Parameters will be colored by the same scheme as used in the Symbolic Expressions. They are a special subset of keywords for the corresponding lexer used for script content colouring of this kind of engine.
