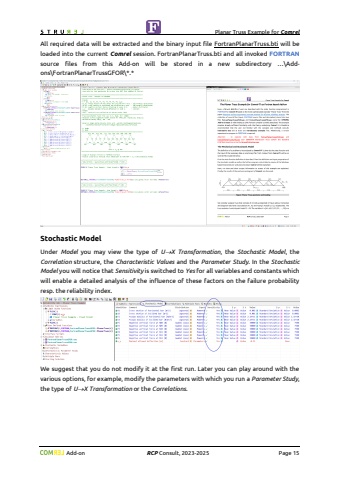

Planar Truss Example for Comrel Add-on RCP Consult, 2023-2025 Page 15All required data will be extracted and the binary input file FortranPlanarTruss.bti will be loaded into the current Comrel session. FortranPlanarTruss.bti and all invoked FORTRANsource files from this Add-on will be stored in a new subdirectory %u2026\\Addons\\FortranPlanarTrussGFOR\\*.*Stochastic ModelUnder Model you may view the type of U%u2192X Transformation, the Stochastic Model, the Correlation structure, the Characteristic Values and the Parameter Study. In the Stochastic Model you will notice that Sensitivity is switched to Yes for all variables and constants which will enable a detailed analysis of the influence of these factors on the failure probability resp. the reliability index. We suggest that you do not modify it at the first run. Later you can play around with the various options, for example, modify the parameters with which you run a Parameter Study, the type of U%u2192X Transformation or the Correlations.
