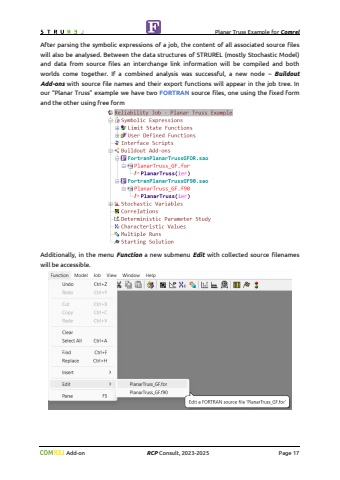

Planar Truss Example for Comrel Add-on RCP Consult, 2023-2025 Page 17After parsing the symbolic expressions of a job, the content of all associated source files will also be analysed. Between the data structures of STRUREL (mostly Stochastic Model) and data from source files an interchange link information will be compiled and both worlds come together. If a combined analysis was successful, a new node %u2013 Buildout Add-ons with source file names and their export functions will appear in the job tree. In our %u201cPlanar Truss%u201d example we have two FORTRAN source files, one using the fixed form and the other using free formAdditionally, in the menu Function a new submenu Edit with collected source filenames will be accessible.
