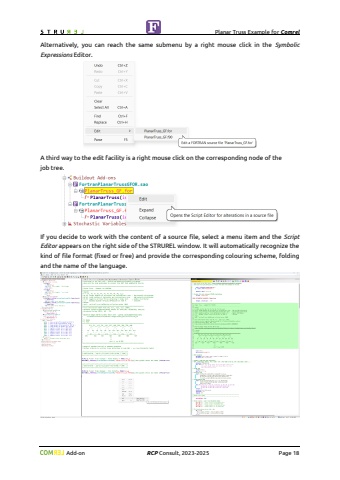

Planar Truss Examplefor ComrelAdd-onRCPConsult, 2023-2025Page 18After parsing the symbolic expressions of ajob, the content of all associated sourcefiles will also be analysed. Between the data structures of STRUREL (mostly Stochastic Model) and data from sourcefilesan interchange link information will be compiled and both worlds come together. If a combined analysis was successful, a new node %u2013Buildout Add-onswith source file names and their export functionswill appear in the job tree. In our %u201cPlanar Truss%u201d example we have two FORTRANsource files, one using the fixedform and the other using free formAdditionally, in the menu Function a new submenu Edit with collected sourcefilenames will be accessible.
